400E Brake Caliper Rebuild

This article is a reference for rebuilding the 4-piston fixed front brake calipers and the 2-piston fixed rear brake calipers for a Mercedes Benz 400E. General information in this article can be referred to for similar brake calipers. Part numbers will be specific to the brake calipers on the 400E.

• Remove brake pads
• Remove calipers from front and rear axles
• Remove brake line from caliper

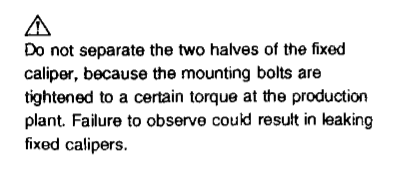

Disassembly does not include separating the caliper halves. If the caliper halves are not leaking brake fluid, then there is no reason to separate the halves and replace the special o-ring inside. Furthermore, Mercedes does not recommend separating the calipers for special torque procedures that are not easily replicated.

1. Remove metal heat shields from pistons with pliers or screwdriver
2. Force compressed air (100 psi) into the hole where the brake line goes to remove pistons
   1. Use 1“ piece of wood as a stop for the pistons
   2. Use 1.5” piece of wood on a pair of opposing pistons to prevent them from moving
   3. Use brake piston pliers if necessary
3. Remove piston dust boot seal
4. Remove square seal in cylinder

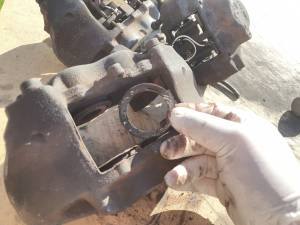

Metal heat shield removed

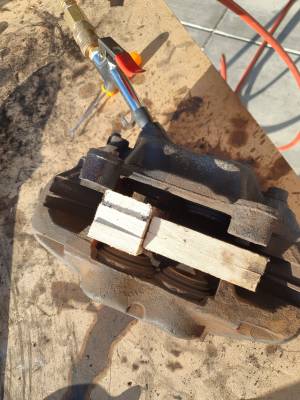

Using compressed air to remove pistons

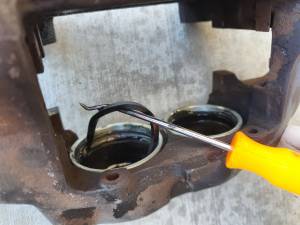

Removing square seal from piston bore

Refinishing the calipers with paint or powder coat is recommended. Make sure to mask off appropriate areas before painting (inside the caliper, pistons, dust seal groove, bleeder thread, brake line thread, mounting threads, sensor wear bracket mounting thread)

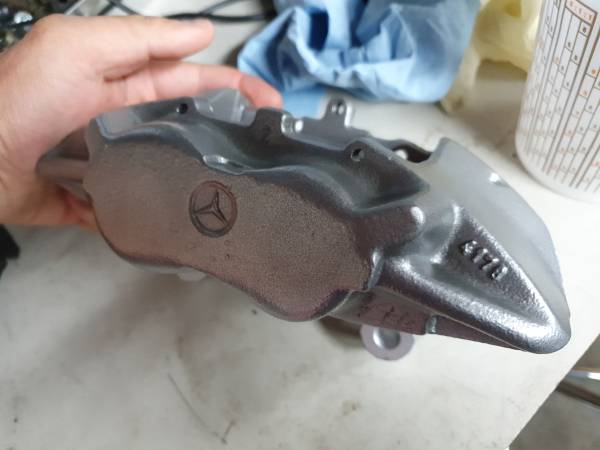

400E caliper powdercoated in silver, front

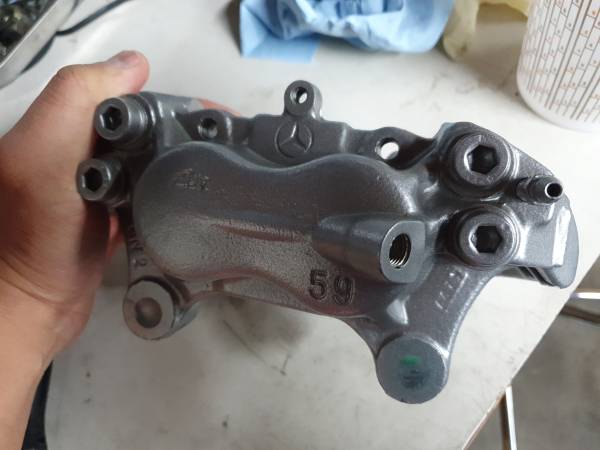

400E caliper powdercoated in silver, back

Use brake assembly lube to put the calipers back together.

Raybestos BAF12 Brake Assembly Fluid

There are 2 parts to order for rebuilding the front calipers. The caliper repair kit (000 421 71 86, requires 2) and the round metal heat shields (000 421 17 20 and 000 421 16 20, requires 4 each).

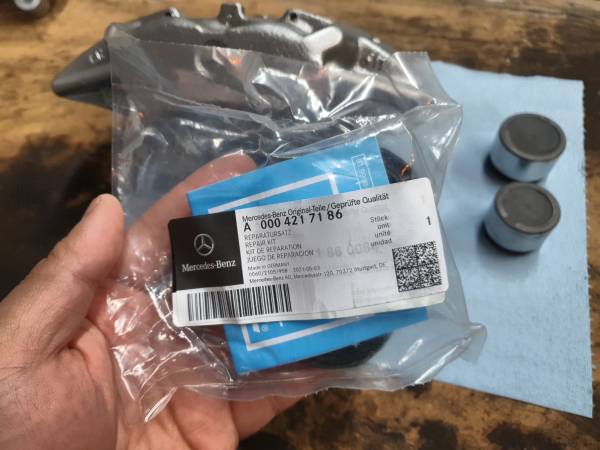

Mercedes caliper repair kit for 400E, 000 421 71 86

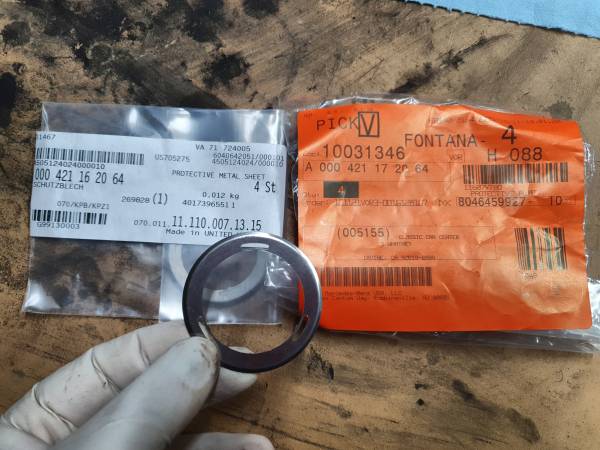

Caliper heat shields. There are 2 different sizes for the larger and smaller pistons

1. Clean the caliper. Blow out any remaining paint dust, dirt, or oil from inside the caliper through the holes for the brake line, bleeder valve, and inside the cylinders
2. Install new square seals in cylinder bore
3. Clean the pistons
4. Install dust cap on the piston
5. Lubricate piston and cylinder with brake assembly fluid and reinsert piston into cylinder bore.
   1. Use a long screw driver or a long 1/4“ extension across the top of the piston to help drive the piston down
6. Seal dust cap along the collar of the cylinder bore
7. Install new metal heat shields on top of the pistons
8. Install new brake bleeder valves

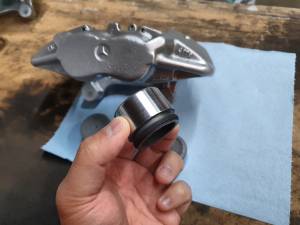

Caliper piston cleaned

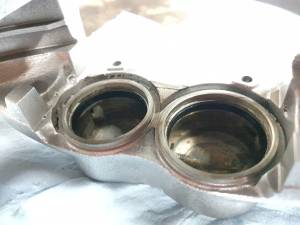

New square seals installed

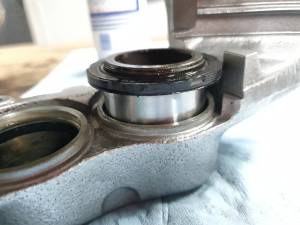

New dust seal installed on piston

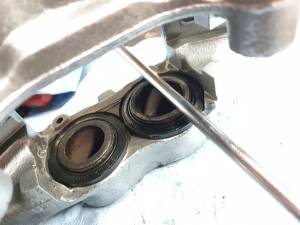

Using a 1/4” extension to help press down the piston

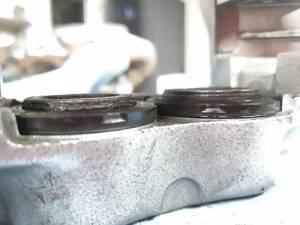

Dust seal must be completely seated down

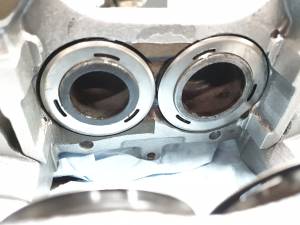

Metal dust shield installed on pistons

Procedures to disassemble and rebuild the rear calipers are very similar to the front. The major difference being the metal heat shield and piston orientation during reassembly.

Disassembly does not include separating the caliper halves. If the caliper halves are not leaking brake fluid, then there is no reason to separate the halves and replace the special o-ring inside. Furthermore, Mercedes does not recommend separating the calipers for special torque procedures that are not easily replicated.

1. Remove metal heat shields from pistons by prying out with screwdriver
2. Force compressed air (100 psi) into the hole where the brake line goes to remove pistons
   1. Use 1“ piece of wood as a stop for the pistons
   2. Use brake piston pliers if necessary
3. Remove piston dust boot seal
4. Remove square seal in cylinder

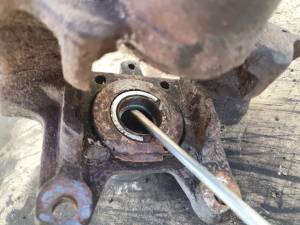

Pry out heat shield with screwdriver

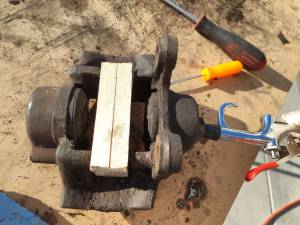

Using compressed air to remove pistons

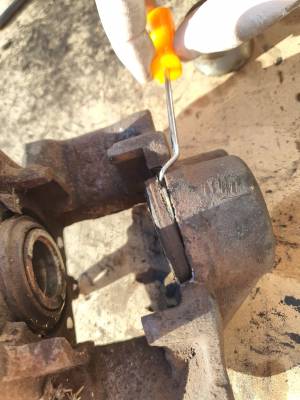

Removing dust seal

Refinishing the calipers with paint or powder coat is recommended. Make sure to mask off appropriate areas before painting (inside the caliper, pistons, dust seal groove, bleeder thread, brake line thread, mounting threads, sensor wear bracket mounting thread)

To rebuild the rear calipers, the repair kit (000 421 72 86, requires 2) needs to be ordered. This kit comes with the square seals, dust seals, and the metal heat shields required for caliper reassembly.

1. Clean the caliper. Blow out any remaining paint dust, dirt, or oil from inside the caliper through the holes for the brake line, bleeder valve, and inside the cylinders
2. Install new square seals in cylinder bore
3. Clean the pistons
4. Install dust cap on the piston
5. Lubricate piston and cylinder with brake assembly fluid and reinsert piston into cylinder bore.
   1. Check orientation of piston with heat shield before inserting piston into cylinder bore
   2. Use a long screw driver or a long 1/4” extension across the top of the piston to help drive the piston down
6. Seal dust cap along the collar of the cylinder bore
7. Install new metal heat shields on top of the pistons
   1. Use caliper piston compressor if necessary
8. Install new brake bleeder valves

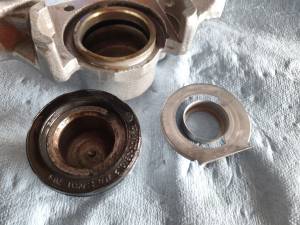

Pay attention to piston orientation with metal heat shield

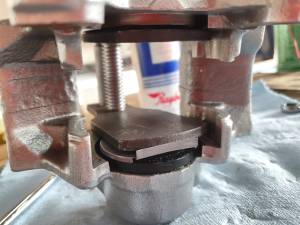

Using a piston compressor to install heat shield
