Fan Drive (103 200 04 22)

Fan Drive (103 200 04 22)

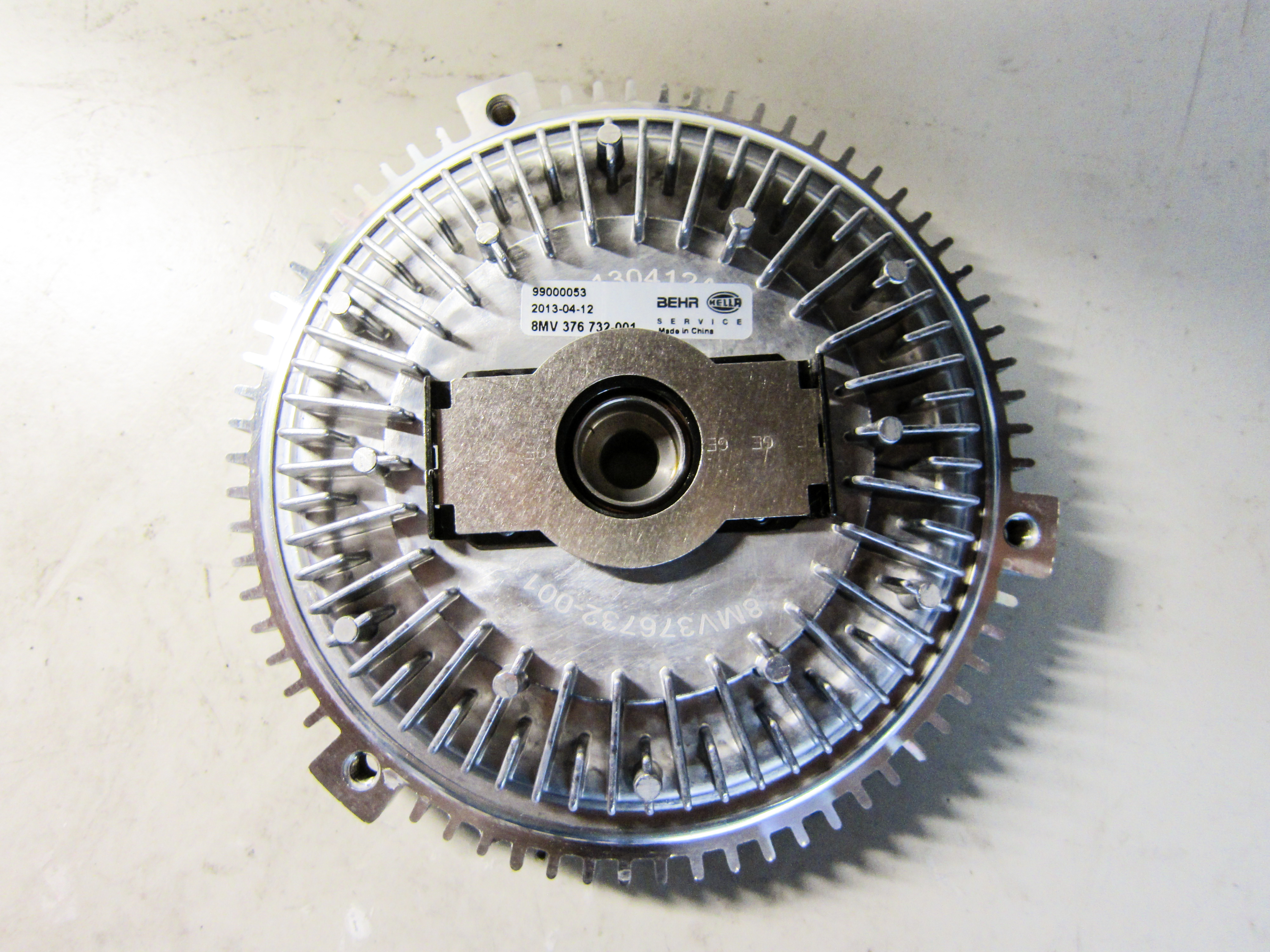

Viscous fan clutch used for cooling the engine

Part number(s): 103 200 04 22
Used on: M103, M104

Special Tool

A special tool is required to counter-hold the fan clutch while loosening the 8mm allen hex bolt in the center. The part number for this tool is 103 589 00 40 00.

Removal

  1. Remove fan shroud
  2. Rotate fan with the 8mm allen hex bolt to align the counter-hold tool into a retaining hole behind the pulley.
  3. While applying pressure on the counter-hold tool, loosen the 8mm hex allen bolt
  4. Remove fan clutch and fan blade assembly together
Counter hold on the fan clutch
Removing fan clutch
